RIDONG Rack-Storage-System is a dynamic fabric roll storage system with automatic unloading of requested fabric rolls directly to the cutting machines Zip Screen Cut or indirectly via an un-/loading station for other cutting machines.
Description
1.The RD-BLCC portal has several freely movable axes. The space under the portal can be filled as desired with different, application-optimized storage racks.The portal can move to freely programmable storage locations.

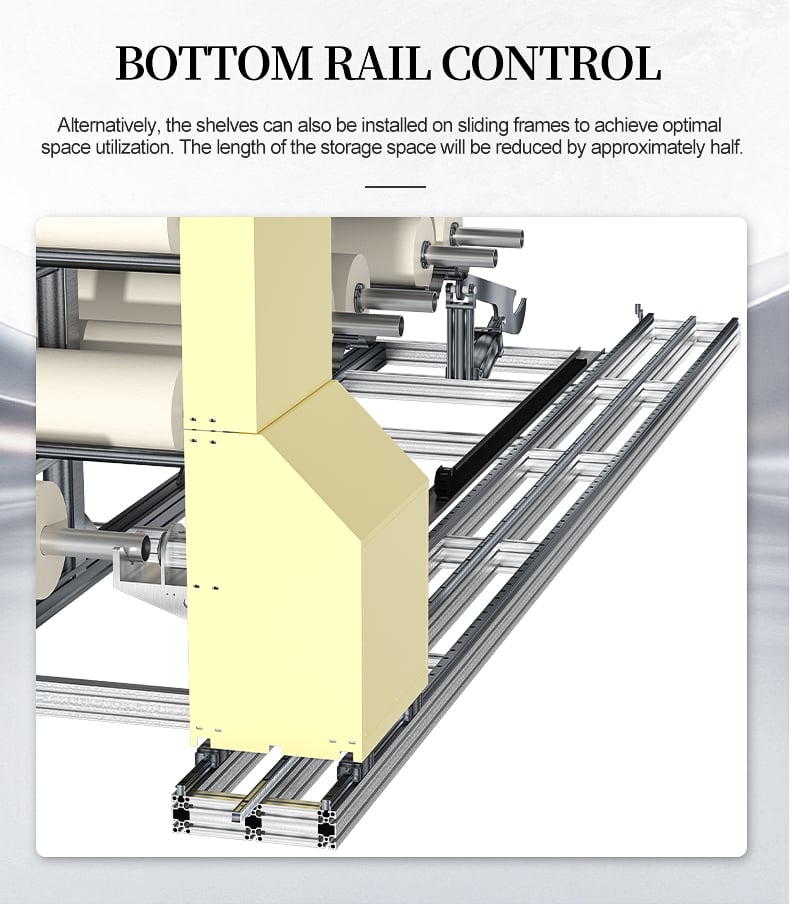

2.Optionally, the racks can also be mounted on sliding frames for optimal space utilization. The length of the storage will be reduced by approx. half.

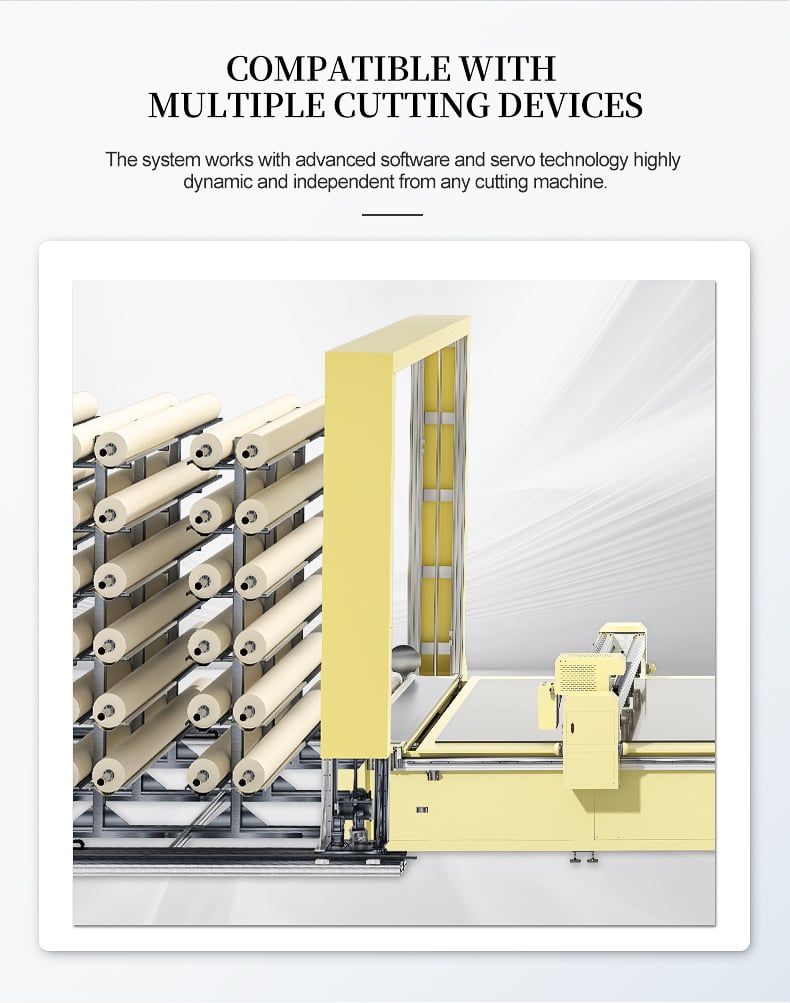

3.The system works with advanced software and servo technology highly dynamic and independent from any cutting machine.

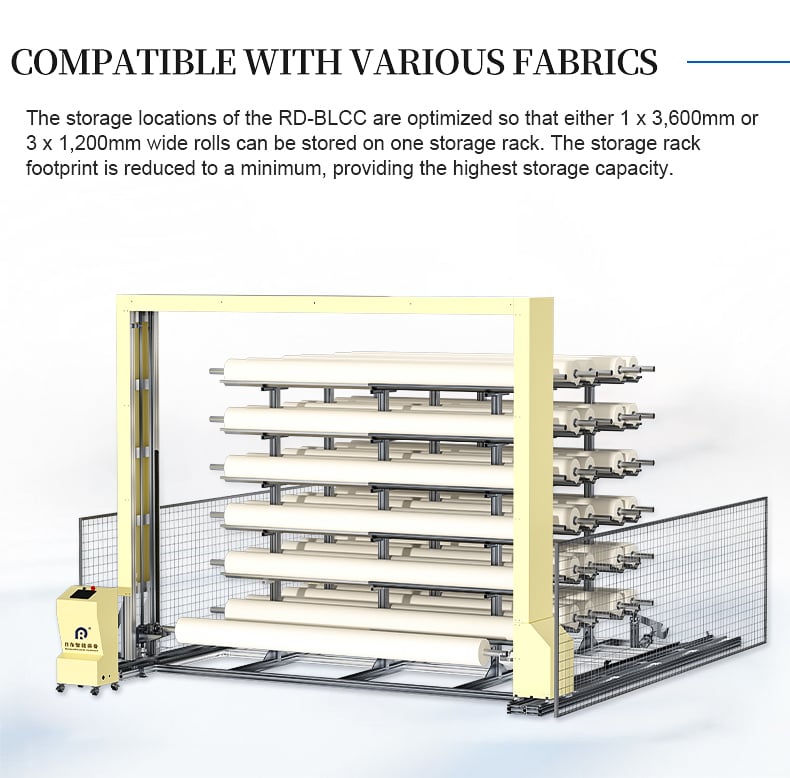

4.The storage locations of the RD-BLCC are optimized so that either 1 x 3,600mm or 3 x 1,200mm wide rolls can be stored on one storage rack. The storage rack footprint is reduced to a minimum, providing the highest storage capacity.
5.RIDONG Rack-Storage-System is a dynamic fabric roll storage system with automatic unloading of requested fabric rolls directly to the cutting machines Zip Screen Cut or indirectly via an un-/loading station for other cutting machines.

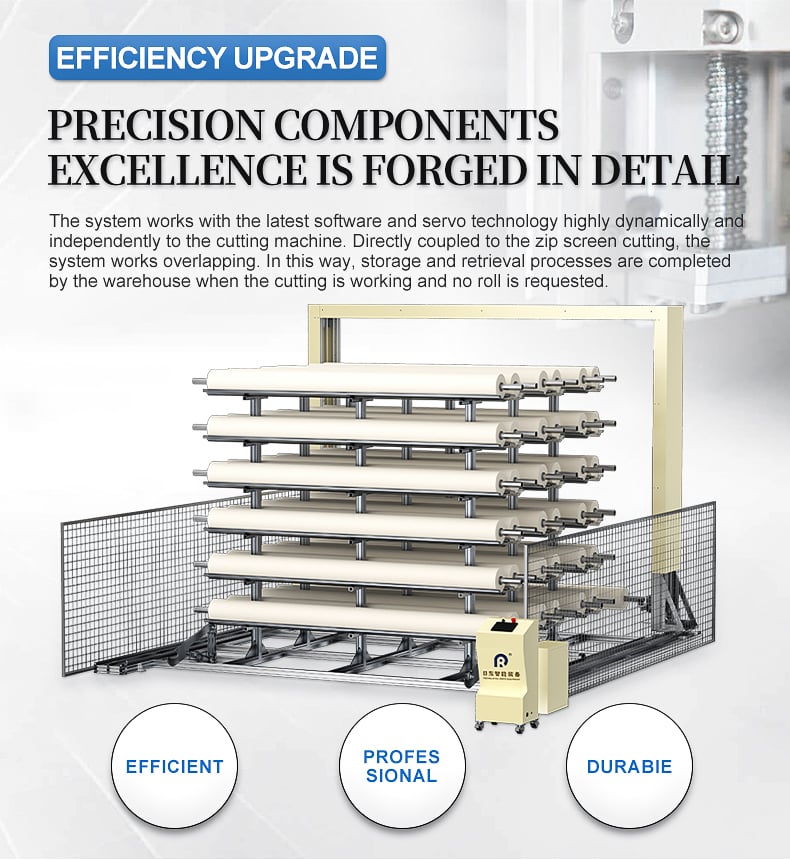

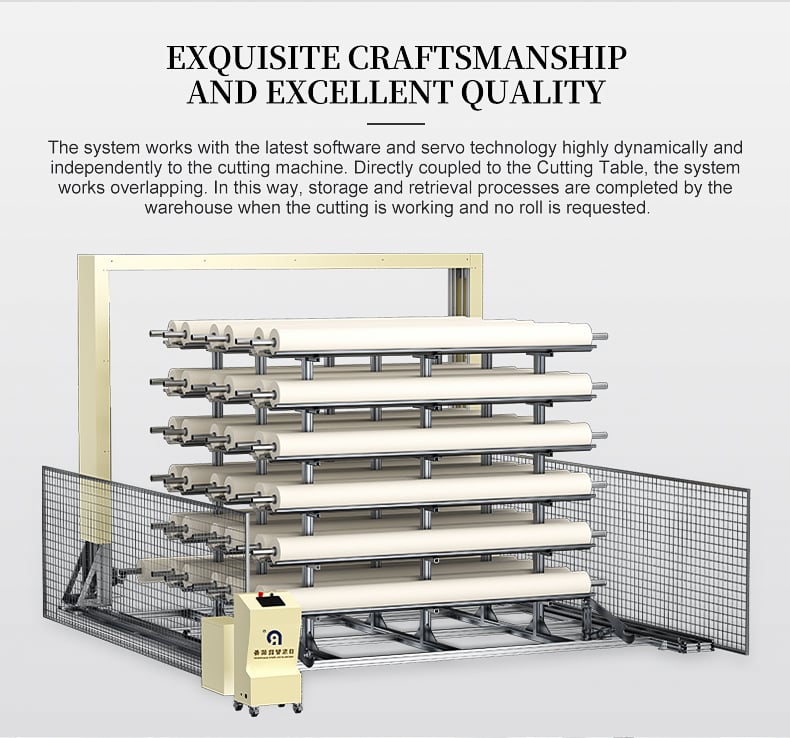

6.The system works with the latest software and servo technology highly dynamically and independently to the cutting machine. Directly coupled to the Cutting Table, the system works overlapping. In this way, storage and retrieval processes are completed by the warehouse when the cutting is working and no roll is requested.

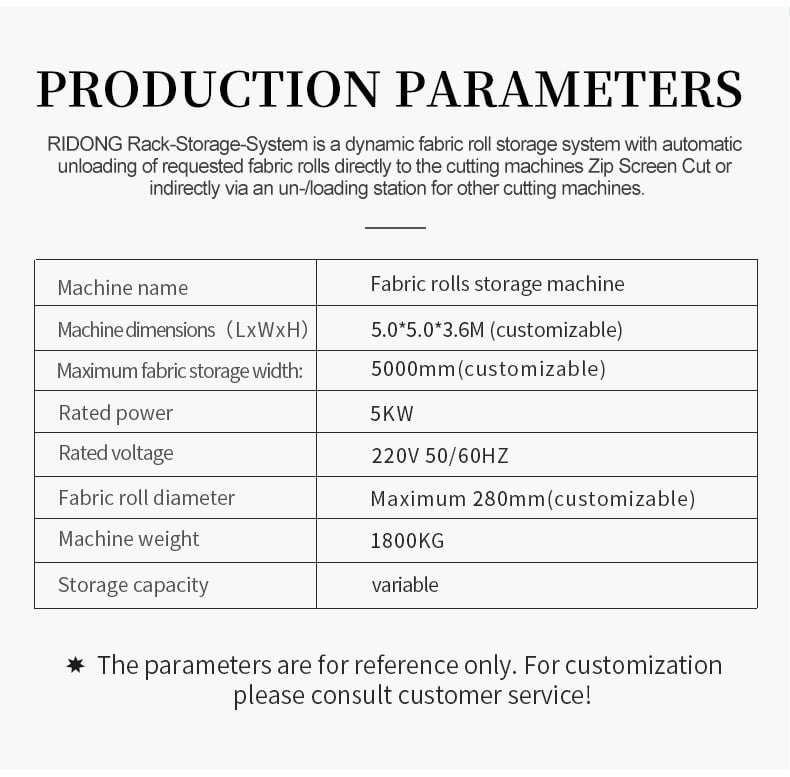

Parameter
| Machine model | RD-BLCC5 |
| Rated voltage | 220/380VAC 50/60Hz |
| Rated power | 5KW |
| Certificate | CE |
