CURTAIN MACHINE PRODUCT LINE

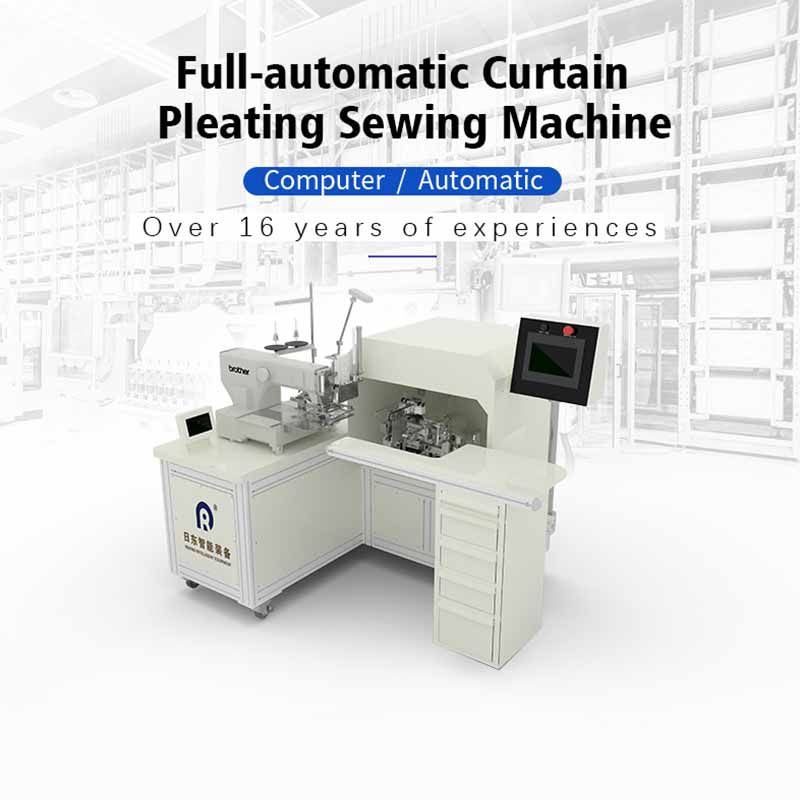

Fully Automatic Curtain Pleating Sewing Machine

This machine adopts advanced pleating technology and is suitable for making curtain heads of various curtain fabrics. The sewing head is imported from Japan, with excellent performance and stable quality. It can pleat thick materials and can make one to three layers of pleats.

Introduction

Description

This equipment uses advanced pleated technology, it suitable for making curtain head for all kinds of curtain fabrics.

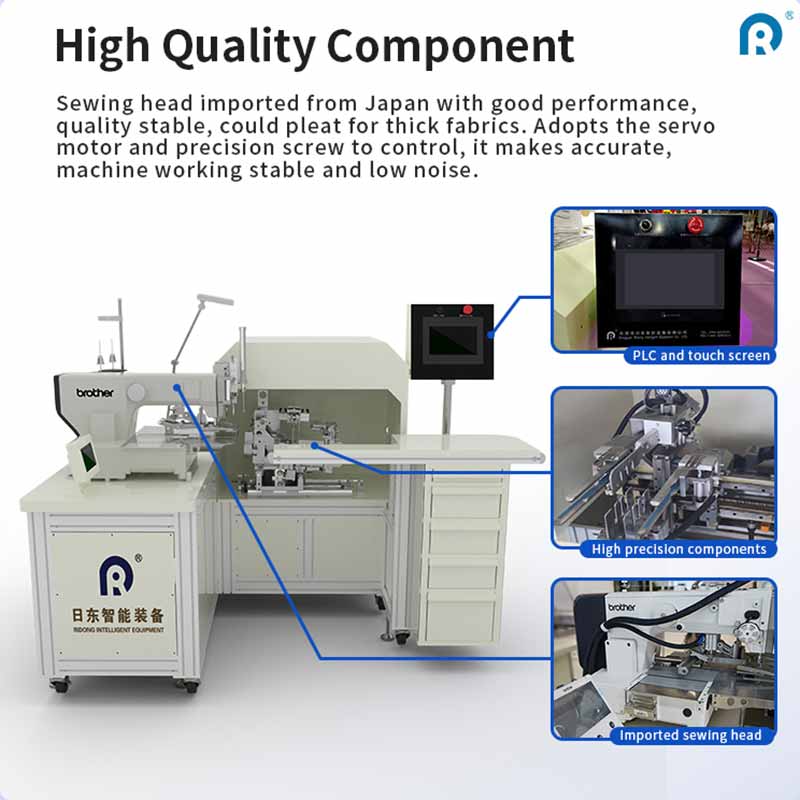

Sewing head import from Japan with good performance, quality stable, could pleat for thick fabrics.
It could make one to three corrugation, depth and with is adjustable.

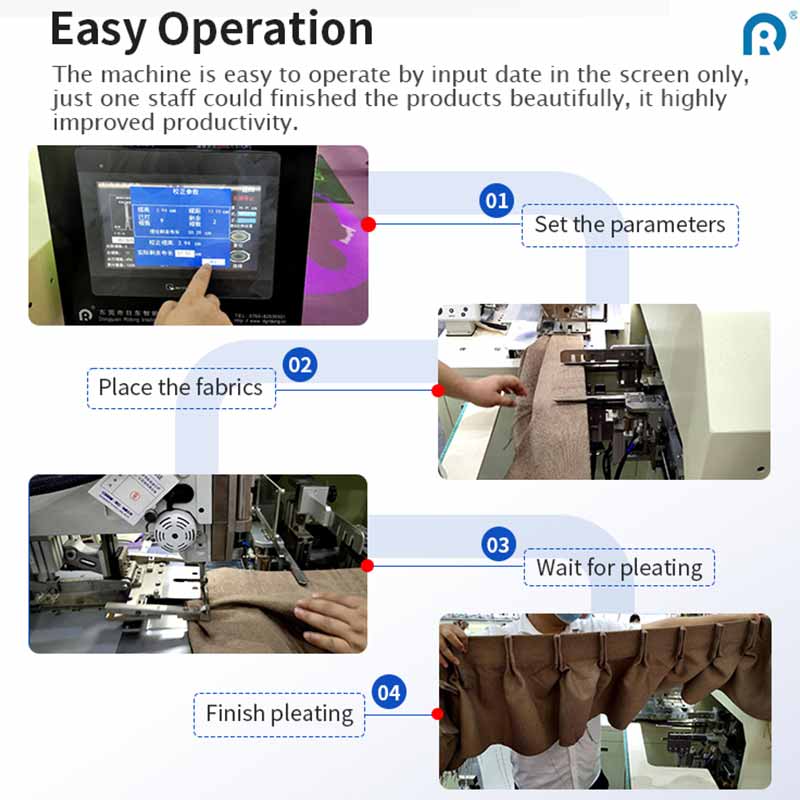

It is easy to operate by input date in the screen only, just one staff could finished the products beautifully.
it highly improved productivity.

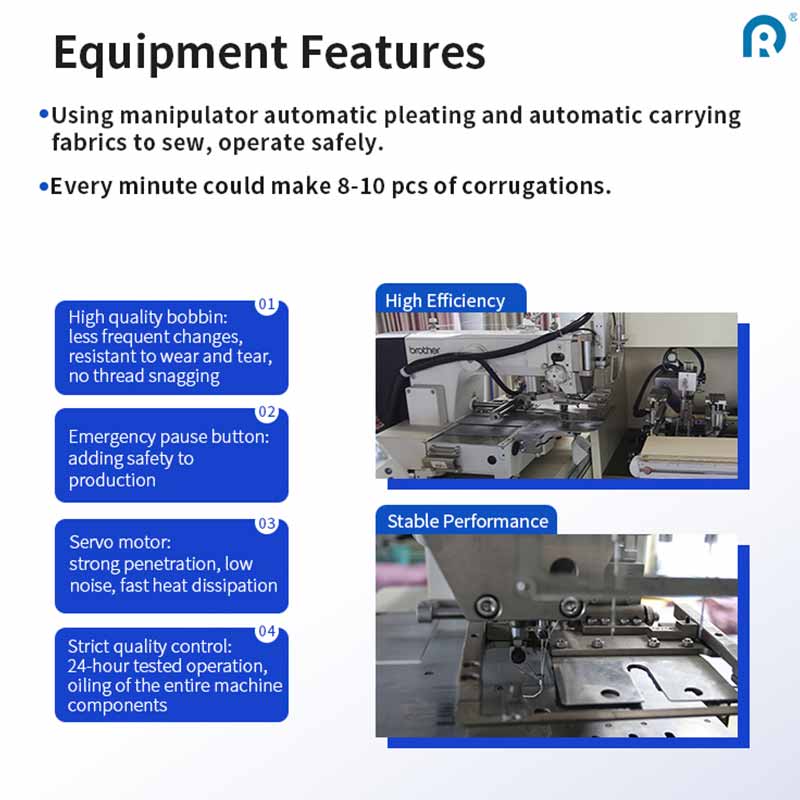

Using manipulator automatic pleating and automatic carrying fabrics to sew, operate safely.
Can make 6-8 pleats per minute.
Adopts the servo motor and precision screw to control, it makes accurate, machine working stable and low noise.
Adopts touch screen to control, easy operate and physical good looking

Parameter

Machine model	RD-DZJ101
Pleated spacing	10-28cm
Pleated height	2-4.5cm
Rated power	1.8KW
Rated voltage	220V
Air pressure	3-6KG/cm2
Machine Size	2180015001500mm
Machine weight	420KG
