High-Precision Large-Format Cutting Solution for Outdoor Shading Fabrics — Fully Customizable

2026-08-11

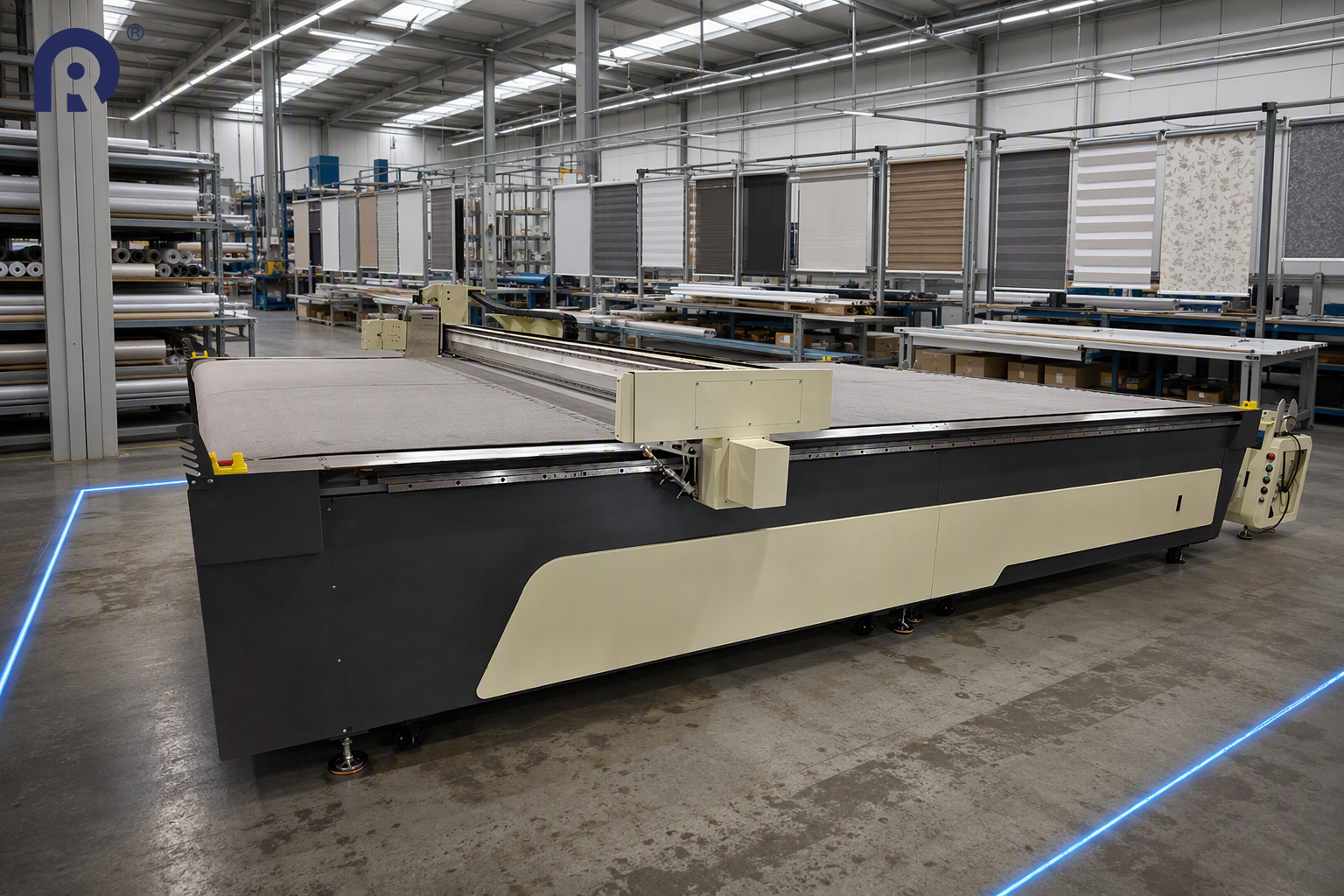

The RD-ZDCC3260 Automatic Fabric Cutting Table is a heavy-duty industrial cutting workstation engineered by Dongguan RIDONG Intelligent Equipment Co., Ltd. Designed specifically for the outdoor sunshade industry, this machine delivers CNC-grade precision across a generous 3.2 m × 6.0 m working bed — with fully customizable dimensions to match your factory layout and production scale.

automatic cutting table 011.png

It handles the full range of shade fabrics: awning canvas, roller blind textiles, zebra blind dual-layer fabrics, zip screen mesh, and acrylic outdoor covers. Whether you are running a mid-size workshop or a high-volume 24/7 plant, the RD-ZDCC3260 keeps your cutting accurate, fast, and safe.

Technical Specifications

Parameter	Specification
Model	RD-ZDCC3260
Cutting Area	3.2 m × 6.0 m (Fully customizable)
Machine Weight	≈ 3,200 kg
Drive Motors (X/Y/Z/T)	Panasonic AC servo motors & drivers
Rack & Gear (X/Y)	German HENRICH — precision-ground
Tool-head Motor	Swiss MAXON — high-speed, low-vibration
Transmission Table Cloth	Emma La (Netherlands) — wear-resistant
High-flex Cables	IKS (Germany) — industrial-grade drag-chain
Electrical Components	Schneider · Panasonic · Omron · Delixi · Chint
Feeding System	Fully automatic, full-pressure cloth plate
Safety	Infrared anti-collision (horizontal + vertical), emergency stop, zero dead-zone protection
Operation Mode	Dual-drive, dual-touch — 24/7 continuous duty
Control Interface	CNC touchscreen with customizable cut-path programming
Customization	Bed size, tool-head configuration, material feed width, conveyor option

Core Engineering Highlights

Panasonic Servo Drive System: Independent servo motors on the X, Y, Z, and T axes ensure nanometre-level repeatability. Acceleration and deceleration are tuned for fabric without stretching or tearing — critical for roll-to-roll shading materials.

German HENRICH Rack & Gear: The X and Y linear motion runs on precision-ground racks from HENRICH (Germany). Paired with the dual-drive architecture, this eliminates backlash and keeps the gantry perfectly synchronized across the full 6-meter span.

Swiss MAXON Tool Head: A high-RPM, low-inertia MAXON motor drives the cutting tool. The result: clean edges on every material — from heavy PVC awning fabric down to sheer fibreglass mesh — with zero fraying or melt-back.

Emma La Conveyor Cloth: The cutting bed is covered with a premium Dutch-made transport cloth that grips fabric firmly during cutting and releases cleanly when the table advances. It stays flat for thousands of cycles, reducing material waste.

Customizable Sizing — Built to Your Floor Plan

The RD-ZDCC3260 is not a one-size-fits-all machine. RIDONG understands that every factory has unique spatial constraints and production throughput targets. Key dimensions and features that can be tailored include:

Cutting bed length and width — extend beyond the standard 3.2×6.0 m to accommodate extra-wide awning fabrics or multi-layer zebra-blind rolls.
Material feed width — match your existing roll inventory to minimize offcut.
Conveyor configuration — add roller conveyors, fabric roll storage machine, stacking stations, or automatic offloading belts to integrate with your downstream workflow.
Tool-head options — choose between blade cutting, round knife, or oscillating tool heads depending on fabric type and edge-finish requirements.
Control interface — multilingual touch-screen UI (English, Spanish, French, Chinese, etc.) for global factory teams.

Fabric Compatibility & Applications

The RD-ZDCC3260 is purpose-built for the outdoor sunshade and window-covering industry. Typical materials processed include:

Fabric Type	Description	Cutting Notes
Awning Fabric	Heavy-gauge PVC, acrylic-coated polyester, solution-dyed canvas.	Clean, perpendicular cuts for watertight seams.
Roller Blind Fabric	Fibreglass, polyester, blackout composites.	Zero-fray edges essential for smooth roll-up operation.
Zebra Blind Fabric	Dual-layer sheer/opaque alternating stripes.	Vision camera ensures pattern alignment; misaligned cuts ruin the product.
Zip Screen Mesh	PVC-coated polyester or fibreglass mesh.	High-frequency blade changes handled easily by the quick-change MAXON head.
Acrylic Outdoor Covers	Thick, rigid plates for sunshades & pergolas.	Dual-drive gantry maintains steady force without chatter across large spans.

Safety & Reliability

Industrial fabric cutting demands uncompromised operator safety. The RD-ZDCC3260 incorporates multi-layer protection:

Infrared anti-collision curtain — horizontal and vertical coverage, zero dead zones. The gantry stops instantly if any object enters the danger zone.
Dual-channel emergency stop — hardwired E-stop buttons on both operator stations.
Full-pressure cloth plate — fingers stay clear of the cutting zone during automatic material advancement.
Cabinet-level electrical protection — Schneider / Omron breakers, overcurrent relays, and isolated low-voltage control circuits.
CE-certified control logic — the machine conforms to EU machinery safety directives for export markets.

Why Choose RIDONG?

Dongguan RIDONG Intelligent Equipment Co., Ltd. brings over 20 years of deep specialization in the sunshade machinery industry. We are not a general-purpose CNC shop — every machine we build is designed by people who understand window-covering production lines end to end.

20+ years of sunshade-industry focus — over 10,000 clients served in 80+ countries.
Complete ecosystem: from fabric storage systems and cutting tables to welding, pleating, and assembly machines.
CE certified manufacturing, with core components sourced from world-class brands.
End-to-end service: R&D, design, manufacturing, on-site installation, operator training, and lifetime after-sales support.
Real-world case studies: trusted by Total Window Concepts (Australia), Pentagrama (Colombia), Farz (Mexico), ROLLERGY (China), and hundreds more.
