CURTAIN MACHINE PRODUCT LINE

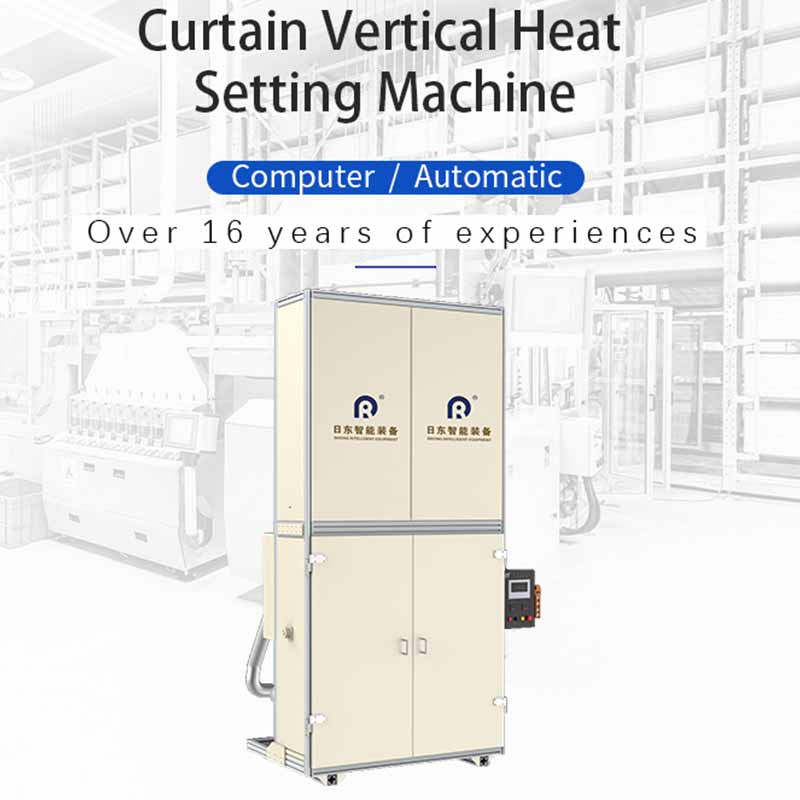

Curtain Vertical Heat Setting Machine

This equipment is used to shape the curtain wave, making the curtain beautiful and elegant. The wave shape can still be maintained after washing. It adopts automatic rapid heating to shape the curtain, so that the curtain fabric is evenly heated.

Introduction

Description

This equipment is used for Finalize the design on curtain wave type, it makes curtain beautiful. After washed, it will still keep the wave shape.

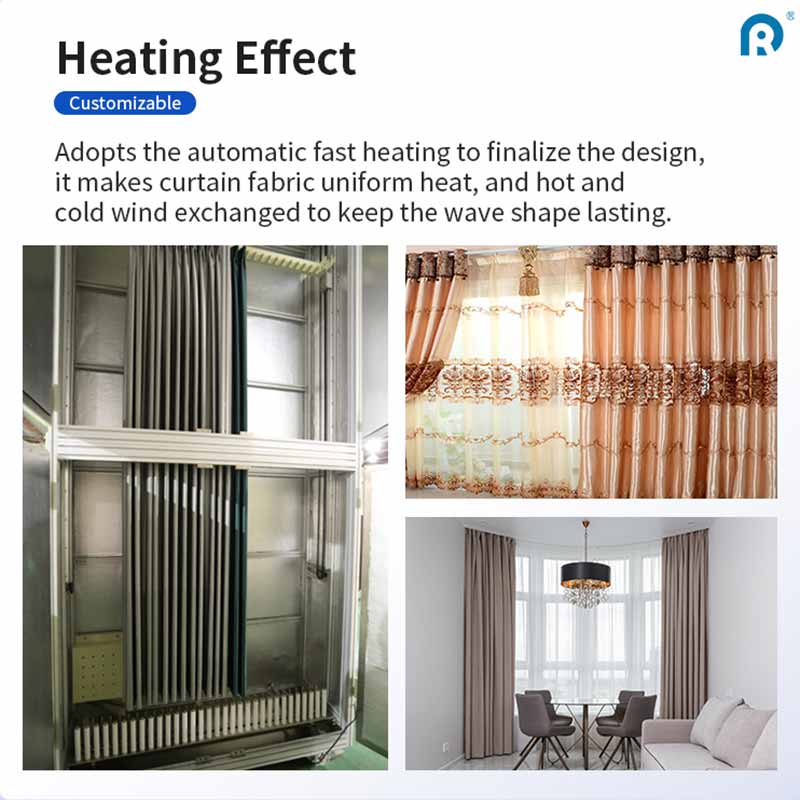

Adopts the automatic fast heating to finalize the design, it makes curtain fabric uniform heat, and hot and cold wind exchanged to keep the wave shape lasting.
Use the computer to adjust the Temperature controller, it can set the different time and temperature by the different curtain fabric.
Adopts the unique cloth frame and the cloth strain frame to let the finalize the design well.
Adopts the electric lifting system to make the operate easily.
It could add spray device to achieve the good effect at the finalize the design.

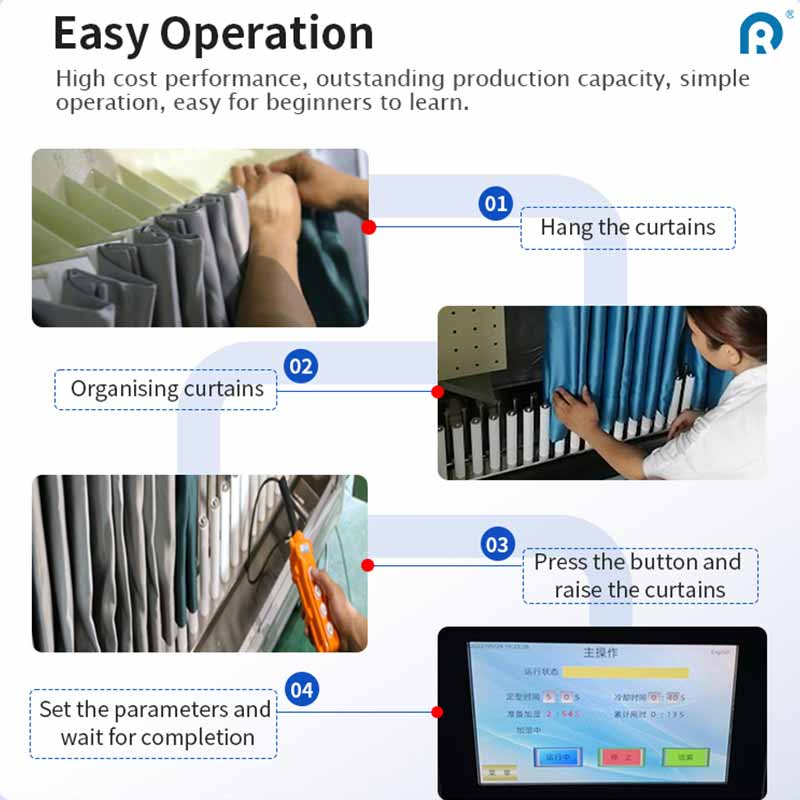

Adopts the computer touch screen to operate, it is easy to input the date.

Parameter

Machine model	RD-DXJ300-31
Setting height	3.1m（customizable）
Rated voltage	380V/50Hz
Rated power	20KW
Air pressure	3-6KG/cm2
Machine Size	200015003600mm
Machine weight	550KG
