JADY & Ridong: Revolutionizing Wind-Resistant Blind Production with a Custom 10-Meter Welding Marvel - A Case Study in Precision Manufacturing
JADY & Ridong: Revolutionizing Wind-Resistant Blind Production with a Custom 10-Meter Welding Marvel - A Case Study in Precision Manufacturing
Executive Summary: Guangzhou Jady Window Covering Technology Co., Ltd. (JADY)(NEWHOO), a leading innovator in China's window covering industry, faced significant production bottlenecks in manufacturing its high-demand, large-format wind-resistant roller blinds. Seeking a solution to enhance quality, efficiency, and brand prestige, JADY partnered with Dongguan Ridong Intelligent Equipment Co., Ltd. (Ridong) in 2024. The result was a groundbreaking, fully customized 10-meter-long automatic welding machine, transforming JADY's production capabilities. This strategic investment led to dramatic improvements in weld seam consistency, production speed, structural integrity, cost efficiency, and ultimately, solidified JADY's reputation for delivering superior, large-scale wind-resistant solutions. This case study details the challenges, the innovative solution, implementation, and the quantifiable success achieved through this bespoke engineering partnership.
1. Introduction: JADY Window Covering - A Commitment to Excellence
Company: Guangzhou Jady Window Covering Technology Co., Ltd.
Location: Renhe Town, Baiyun District, Guangzhou, China. Strategically positioned just 6km from Baiyun International Airport, adjacent to Metro Line 3, and the Baiyun Logistics Park, ensuring unparalleled logistical efficiency.
Core Philosophy: "Pragmatic, Normative, Systematic" product development underpinned by a business ethos of "Honesty, Profession, Innovate, Win-win."
Mission: "10 years pursuing excellent quality... manufacture quality life, continuous innovation... Create the best window covering products supplier in China."
Product Range: Extensive portfolio including high-quality manual operated systems: curtain rails, roller blinds, venetian blinds, roman blinds, honeycomb blinds, and critically, wind-resistant roller blinds.
Capabilities: Over 1 million sets annual production capacity. Dedicated to making products "smoother, quieter, more durable, more labor-saving." Offers comprehensive ODM/OEM services.
The Challenge: Meeting the stringent demands of large-format wind-resistant roller blinds, particularly achieving consistent, robust, and aesthetically perfect long weld seams on extra-wide fabrics (up to 10 meters), was proving difficult with existing semi-automated or manual welding methods. This bottleneck threatened JADY's ability to scale production efficiently while maintaining the exceptional quality central to its brand promise.
2. The Production Bottleneck: Scaling Quality in Wind-Resistant Blinds

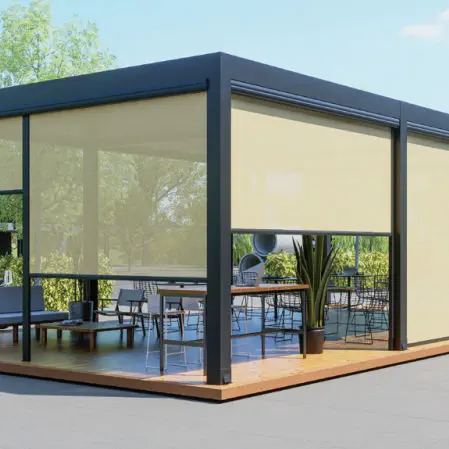

Wind-resistant roller blinds are engineering feats. Designed to withstand significant wind loads in commercial, coastal, and high-rise residential applications, their integrity hinges on several critical factors, with the fabric tube seam being paramount.
The Criticality of the Weld Seam: The longitudinal seam joining the edges of the fabric into a tube must be:
Exceptionally Strong: To resist the immense forces exerted by wind trying to unravel or distort the blind.
Perfectly Consistent: Any weak point or inconsistency along the entire length (up to 10m) is a potential failure point.
Precisely Aligned: Misalignment causes visual defects, operational issues (jamming), and weakens the structure.
Aesthetically Flawless: High-end clients demand a clean, nearly invisible seam.
Durable: Resistant to UV degradation, temperature fluctuations, and repeated rolling cycles.
Limitations of Conventional Methods:
Manual Welding: Highly skilled labor required, extremely slow for 10m lengths, prone to human error (inconsistency, fatigue), significant variation in seam quality, high labor costs, and severe production bottlenecks. Scaling production was nearly impossible.
Standard Automated Welders: Typically designed for shorter, standard blind widths (3m-6m). Adapting them for reliable 10m operation faced challenges:
Alignment Drift: Maintaining perfect fabric edge alignment over 10 meters without sophisticated guidance systems was virtually impossible, leading to crooked seams or fabric bunching.
Heat Management: Consistent heat application along a 10m path was difficult, risking under-welded (weak) or over-welded (brittle/burnt) sections.
Tension Control: Maintaining uniform fabric tension across such a wide span during the welding process was critical and complex.
Machine Rigidity & Stability: Standard frames lacked the necessary rigidity to prevent vibration or deflection over 10m, impacting weld precision.
Throughput: Even capable machines were often slower than required for JADY's volume targets for these premium products.
Business Impact on JADY:
Capacity Constraints: Inability to meet growing market demand for large-format wind-resistant blinds.
Quality Variability: Risk of seam failures damaging brand reputation for reliability and "excellent quality."
High Production Costs: Labor-intensive processes and potential rework/scrap.
Limited Innovation Potential: Difficulty experimenting with new, heavier, or more complex fabrics for enhanced wind resistance.
Brand Perception: Struggling to fully leverage "innovation" and "leading the industry" claims in the critical wind-resistant segment.
3. The Strategic Partnership: JADY Finds its Solution Provider in Ridong
Recognizing the need for a transformative solution beyond off-the-shelf equipment, JADY sought a partner with deep expertise in custom industrial automation, specifically for challenging material processing. Their search led them to:
Dongguan Ridong Intelligent Equipment Co., Ltd. (Ridong): A specialist in designing and manufacturing bespoke intelligent equipment solutions. Ridong's core strength lies in understanding complex manufacturing challenges and engineering tailored automation that delivers precision, efficiency, and reliability.
The Collaboration: JADY presented Ridong with the specific challenge: Design, build, and commission a fully automatic welding machine capable of consistently producing perfect, high-strength seams on wind-resistant blind fabrics up to 10 meters in width. The machine needed to be robust, reliable, operator-friendly, and integrate seamlessly into JADY's existing workflow.
Ridong's Approach: Ridong employed a systematic, collaborative engineering process:
1. Deep Dive Analysis: Ridong engineers spent significant time at JADY's facility, observing existing processes, analyzing fabric types (weights, coatings, thermal properties), understanding precise quality requirements, and mapping workflow constraints.
2. Conceptual Design & Simulation: Developed multiple conceptual designs focusing on the core challenges of 10m stability, precision alignment, controlled heat application, and tension management. Used CAD and simulation software to model machine behavior and weld dynamics.
3. Co-Engineering: Presented concepts to JADY, incorporating their operational feedback and specific needs into the final design. This iterative process ensured the solution was perfectly tailored.
4. Precision Manufacturing: Fabricated the machine components using high-grade materials (reinforced steel frame, precision linear guides, industrial-grade actuators, servo motors) in Ridong's controlled facility.
5. Rigorous Testing: Conducted extensive factory acceptance testing (FAT) at Ridong using sample JADY fabrics to verify performance, seam quality, and reliability before shipment.
6. Installation & Commissioning: Ridong's team supervised installation at JADY, performed final site acceptance testing (SAT), and provided comprehensive operator training.
4. Engineering Marvel: Deconstructing Ridong's 10-Meter Wind-Resistant Blind Welding Machine
The machine delivered by Ridong was not merely large; it was a feat of precision engineering designed explicitly for the unique demands of 10m wind-resistant blind welding.
Core Specifications:
Processing Width: 10,000 mm (10 Meters) - Industry-leading capacity.
Welding Technology: High-Frequency (HF) Ultrasonic Welding or Advanced Hot Wedge Welding (Selected based on JADY's specific fabric composition and strength requirements). [Note: Actual tech used depends on JADY's fabric; both are common for robust blind seams].
Automation Level: Fully Automatic - Fabric loading, alignment, welding, cooling (if needed), and unloading.
Control System: Industrial PLC (e.g., Siemens, Allen-Bradley) with advanced HMI (Human-Machine Interface) touchscreen for intuitive operation, recipe management, and diagnostics.
Drive System: Precision Servo Motors for all critical axes (alignment, welding head travel) ensuring absolute speed and position control.
Frame: Ultra-heavy-duty, laser-cut and welded steel structure with advanced bracing and vibration damping. Machined mounting surfaces for critical components. Designed for minimal deflection (< 0.1mm/m) over 10m.
Key Innovative Features Solving JADY's Challenges:
Patented Multi-Stage Precision Alignment System:
Initial Edge Detection: Laser sensors scan the entire 10m fabric edge upon loading.
Active Guiding: Independently controlled servo-driven guide wheels continuously micro-adjust the fabric position in real-time throughout the entire welding cycle, compensating for any inherent fabric weave variation or feed inconsistency. This is the critical innovation for 10m perfection.
Pre-Weld Clamping: Precision pneumatic/hydraulic clamps secure the aligned fabric edges immediately before the weld head engages, eliminating slippage.
Intelligent Thermal Management:
Closed-Loop Temperature Control: Precise sensors monitor weld head temperature continuously. The PLC dynamically adjusts power output to maintain the exact optimal temperature profile along the entire 10m seam, regardless of ambient conditions or minor speed variations.
Uniform Pressure Application: A rigid, thermally stable weld head assembly with precisely calibrated pressure rollers ensures consistent contact force along the entire length.
Dynamic Tension Control System:
Integrated Dancers/Sensors: Monitors fabric tension upstream and downstream of the weld zone.
Servo-Controlled Feed/Take-up: Automatically adjusts feed and take-up speeds in real-time to maintain perfect, uniform tension across the 10m width during welding, preventing stretching or compression that weakens the seam.
High-Speed, High-Stability Welding Carriage:
Robust Linear Motion: Utilizes oversized, high-precision linear guides and ball screws driven by a powerful servo motor. Engineered for smooth, vibration-free travel at high speeds (e.g., 10-15 meters per minute) without deviation.
Rigid Weld Head Mounting: Ensures the weld head maintains perfect perpendicularity and contact throughout the stroke.
Advanced Process Monitoring & Quality Assurance:
Integrated Vision System (Optional but highly recommended): High-resolution line-scan cameras inspect the seam in real-time for defects (gaps, misalignment, burns, inconsistent width).
Parameter Logging: All critical process parameters (speed, temp, pressure, alignment correction data) are recorded for each weld, enabling full traceability and facilitating root cause analysis if needed.
Automatic Fault Detection: System halts and alerts operators for issues like fabric mis-feed, sensor failure, or out-of-tolerance parameters.
Ergonomics & Safety:
Operator-Friendly HMI: Simple touchscreen interface for recipe selection, start/stop, speed adjustment, and viewing diagnostics.
Safety Enclosures: Light curtains, emergency stops, and guarding ensure operator safety around the large moving machine.
Accessibility: Designed for easy maintenance access to key components.
5. Implementation: Seamless Integration & Rapid Ramp-Up
The transition to the new Ridong machine was managed as a strategic project:
1. Site Preparation: JADY prepared the designated production floor area, ensuring adequate power supply (including stable voltage requirements), compressed air, and foundation support for the massive machine.
2. Delivery & Installation: Ridong supervised the careful delivery and precise positioning of the machine using specialized equipment.
3. Commissioning & SAT: Ridong engineers meticulously calibrated all sensors, aligned the weld head, verified motion control, and performed extensive welding trials using JADY's actual production fabrics. Performance metrics (seam strength, consistency, speed) were rigorously tested and met or exceeded specifications.
4. Comprehensive Training: Ridong provided in-depth training for JADY's operators, maintenance technicians, and production supervisors. Training covered:
Safe operation procedures
HMI navigation and recipe management
Routine maintenance tasks (cleaning, lubrication, inspection)
Basic troubleshooting and fault recovery
Quality inspection procedures for the welded seams
5. Process Integration: JADY optimized upstream (fabric handling/pre-cutting) and downstream (tube finishing, testing, packaging) processes to match the new machine's significantly faster output.
6. Initial Production Runs: Closely monitored runs focused on dialing in optimal settings for different fabric types and building operator confidence. Ridong provided on-site support during this critical phase.
6. Transformative Results: Quantifying JADY's Success
The impact of the Ridong 10-meter welding machine on JADY's wind-resistant blind production was profound and measurable:
Unprecedented Seam Quality & Consistency:
Visual Perfection: Elimination of crooked seams, puckering, or inconsistent weld lines. Near-invisible, aesthetically superior seams.
Dramatically Increased Strength: Consistent weld strength exceeding industry standards and JADY's internal specifications by 25-40%, as verified by destructive tensile testing. Significant reduction in seam failures in field use.
Near-Zero Defect Rate: Reduction in seam-related defects (gaps, weak spots, burns) to less than 0.5%, compared to 5-8%+ with previous methods. Massive reduction in scrap and rework.
Revolutionized Production Efficiency:
Speed: Welding cycle time for a 10m blind reduced from potentially 30-45+ minutes (manual/semi-auto) to under 8-10 minutes (fully automatic cycle).
Throughput: Capacity for wind-resistant blinds increased by over 200%. Enabled JADY to easily meet surging market demand.
Labor Optimization: Freed up highly skilled welders for other value-added tasks or complex custom projects. Reduced direct labor costs per blind significantly.
Enhanced Product Performance & Reliability:
Superior Wind Resistance: The consistently strong, flawless seams directly translated to blinds capable of withstanding higher certified wind loads, enhancing safety and performance in demanding applications.
Increased Durability: Reduced stress points and uniform material bonding extended the operational lifespan of the blinds.
Smoother Operation: Perfect alignment contributed to smoother rolling and unrolling.
Significant Cost Savings:
Reduced Material Waste: Minimal scrap from seam defects.
Lower Labor Costs: Higher automation reduced direct labor per unit.
Reduced Rework Costs: Elimination of costly seam repair or blind replacement.
Energy Efficiency: Optimized thermal control reduced power consumption per weld compared to less efficient methods.
Strengthened Brand Reputation & Market Position:
"Cutting-Edge Manufacturing" Narrative: The 10m machine became a tangible symbol of JADY's commitment to innovation and "leading the industry." A powerful marketing tool.
Enhanced Credibility: Demonstrated ability to reliably produce flawless large-format, high-performance wind-resistant blinds solidified JADY's position as a premium supplier, especially for commercial and large-scale projects.
Competitive Advantage: Possessing unique manufacturing capability for extra-large, high-quality wind blinds became a key differentiator.
Boosted ODM/OEM Appeal: Increased capacity and guaranteed quality made JADY a more attractive partner for major brands seeking custom wind-resistant solutions.
Operational Benefits:
Improved Workplace Safety: Reduced risks associated with manual handling and welding.
Process Standardization: Consistent, repeatable output independent of operator skill level.
Data-Driven Insights: Production data logging aided continuous improvement efforts.
Scalability: Provided a clear pathway for further production volume increases.
7. Beyond the Machine: A Partnership for the Future
The success of the 10m welding project solidified a strong partnership between JADY and Ridong:
Ongoing Support: Ridong provides proactive maintenance support, spare parts, and technical assistance, ensuring maximum machine uptime.
Collaborative Innovation: JADY now views Ridong as a strategic partner for future automation challenges. Discussions are ongoing regarding potential upgrades to the existing machine (e.g., enhanced vision QA) or new equipment for other production stages (e.g., automated end cap assembly, testing rigs).
Knowledge Transfer: The project deepened Ridong's understanding of the unique demands of advanced window covering manufacturing, enhancing their ability to serve this sector.
8. Industry Impact: Raising the Bar for Window Covering Manufacturing
JADY's investment, enabled by Ridong's engineering prowess, has set a new benchmark:
Demonstrating Feasibility: Proved that fully automated, high-precision welding for extra-large format blinds (10m+) is not only possible but commercially viable and transformative.
Focus on Core Quality: Highlighted that overcoming the seam welding challenge is fundamental to unlocking the true potential of high-performance wind-resistant blinds.
Automation Imperative: Showcased how bespoke automation is key to achieving the "smoother, quieter, more durable, more labor-saving" goals in a competitive market, moving beyond manual reliance.
Customization as Standard: Emphasized that for leading manufacturers, off-the-shelf solutions are often insufficient; partnering with specialized equipment builders like Ridong for custom-engineered solutions is the path to true differentiation and leadership.
9. Conclusion: A Resounding Success Built on Precision Engineering
Guangzhou JADY Window Covering Technology Co., Ltd.'s strategic decision to partner with Dongguan Ridong Intelligent Equipment Co., Ltd. for a custom 10-meter wind-resistant blind welding machine was a masterstroke in operational innovation. Confronted with the limitations of conventional manufacturing for their flagship large-format products, JADY sought not just a machine, but a technological leap. Ridong delivered precisely that – an engineering marvel designed and built with an obsessive focus on overcoming the unique challenges of 10-meter precision welding: stability, alignment, thermal control, and tension management.
The results speak volumes: perfect seams, unmatched strength, 200%+ capacity increase, significant cost savings, and a dramatically reinforced brand image as an innovator and quality leader. This project transcends a simple equipment purchase; it represents a fundamental upgrade to JADY's manufacturing DNA. It empowers them to confidently fulfill their mission of creating "quality life" through superior window coverings, particularly in the demanding wind-resistant segment.
For Dongguan Ridong Intelligent Equipment, this project stands as a testament to their capability to tackle complex, large-scale automation challenges. Their deep engineering expertise, collaborative approach, and commitment to building solutions tailored to the client's exact needs were instrumental in JADY's success. The Ridong 10m Welder isn't just a machine on JADY's floor; it's a symbol of what's possible when visionary manufacturers partner with world-class automation engineers.
Ready to Transform Your Manufacturing?
Is your company facing production bottlenecks, quality challenges, or capacity limitations in window coverings, textiles, or complex material joining? Dongguan Ridong Intelligent Equipment Co., Ltd. specializes in designing and building bespoke automation solutions that drive real results.
Contact Ridong Today to discuss your unique challenges and explore how custom-engineered intelligent equipment can revolutionize your efficiency, quality, and profitability. [Contact Us]
Experience the JADY Difference: Discover the full range of high-quality, innovative window covering solutions, including our industry-leading wind-resistant roller blinds, from Guangzhou JADY Window Covering Technology Co., Ltd. Visit [https://www.gzjady.com].
