Fabric Roll Storage & Cutting Integrated System

• 20 Years of Automation Expertise — RIDONG has been deeply involved in the outdoor shading and cutting industry for two decades, serving 80+ countries across the Americas, Europe, Southeast Asia, Oceania, and the Middle East.
• Intelligent Storage & Cutting Integration — Combines dynamic fabric-roll storage with an automated cutting table. After parameter setting, the system automatically unloads required rolls and feeds them directly to the zip-screen cutting station for seamless production.
• High-Speed Servo & Advanced Software Control — The storage module operates dynamically and independently from any cutting machine. Overlapping workflows mean retrieval happens while cutting is still in progress, eliminating idle waiting time.
• Bottom-Rail Sliding Frames for Space Optimization — Shelves can be installed on sliding frames to maximize floor-space utilization, reducing total storage footprint by approximately 50%.
• Compatible with Multiple Cutting Devices — Works with CNC Oscillating Knife Cutting Tables and Automatic Ultrasonic Cutting Tables. Mix-and-match configurations to suit different fabric types and production scales.
• Fully Customizable Dimensions & Capacity — Machine size, storage width, roll diameter, and overall capacity are all adjustable according to your factory layout and throughput requirements.

Product Overview

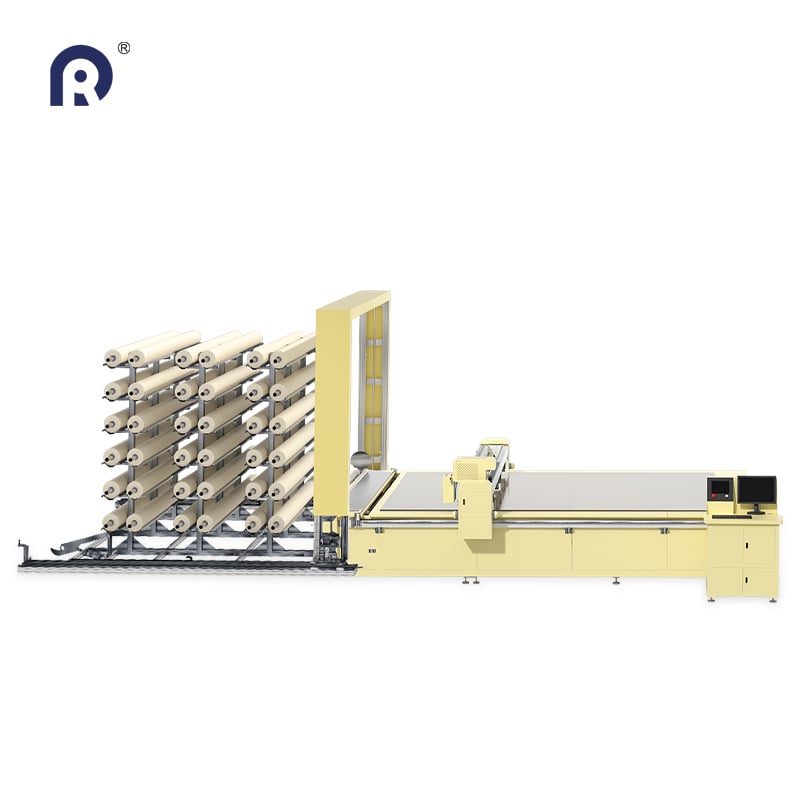

The RIDONG Fabric Roll Storage & Cutting Integrated System is a turnkey automation solution designed for zip-screen, outdoor-shading, and textile-cutting manufacturers. It unifies two traditionally separate workflows — fabric-roll warehousing and precision cutting — into a single, software-controlled production line.

After the operator sets parameters through the integrated control interface, the system autonomously identifies, unloads, and transports the required fabric roll from the multi-tier storage rack to the cutting table. The cutting unit then processes the zip-screen finished products with zero manual intervention.

Built on advanced servo-motor technology and proprietary motion-control software, the storage module can run asynchronously and independently from the cutting machine. This parallel-processing architecture means that while one roll is being cut, the next roll is already being retrieved and positioned — dramatically increasing throughput and eliminating downtime between jobs.

For factories with limited floor space, the bottom-rail sliding-frame configuration allows the storage shelves to compact inward, reducing the total occupied length by roughly half. The system is also designed to be agnostic to the cutting method: it can be paired with either a CNC Oscillating Knife Cutting Table for heavy-duty technical fabrics, or an Automatic Ultrasonic Cutting Table for delicate, heat-sealable materials. Both options are factory-engineered and tested for seamless hand-off between storage and cutting stations.

With a rated power of 20 kW and support for 380 V 50/60 Hz supply, the system is ready for industrial-grade installations worldwide. Every unit is dimensionally customizable (standard footprint 10.0 x 5.0 x 3.6 m), so whether you operate a compact workshop or a high-volume factory floor, the layout can be tailored to your exact needs.

Technical Specifications

Target Applications & Industries

• Zip Screen & Outdoor Shading Fabric Production
• Roller Blind & Insect Screen Manufacturing
• Technical Textile & Industrial Fabric Cutting
• Awnings & Tarpaulin Processing
• Large-Scale Fabric Warehouses & Distribution Centers

FAQ Schema — Suggested Q&A for Google FAQ Rich Snippet

Q: What cutting machines can be integrated with this system?

A: The Fabric Roll Storage & Cutting Integrated System is compatible with CNC Oscillating Knife Cutting Tables and Automatic Ultrasonic Cutting Tables. Both can be factory-fitted to match your specific fabric type and production requirements.

Q: Is the machine size customizable?

A: Yes. Standard dimensions are 10.0 x 5.0 x 3.6 m, but length, width, height, storage width, and roll capacity are all fully customizable based on your factory layout and throughput needs.

Q: How does the space-saving feature work?

A: The storage shelves can be mounted on bottom-rail sliding frames. When activated, the entire rack compacts inward, reducing the total storage footprint by approximately 50% — ideal for workshops with limited floor space.

Q: What is the rated power and voltage requirement?

A: The system operates at 20 kW rated power with a 380 V / 50–60 Hz three-phase supply, suitable for industrial installations worldwide.

Q: What after-sales support does RIDONG provide?

A: RIDONG offers factory-direct sales, on-site installation supervision, free operator training, and proof-sample validation before final acceptance. Our service network covers 80+ countries and regions.
